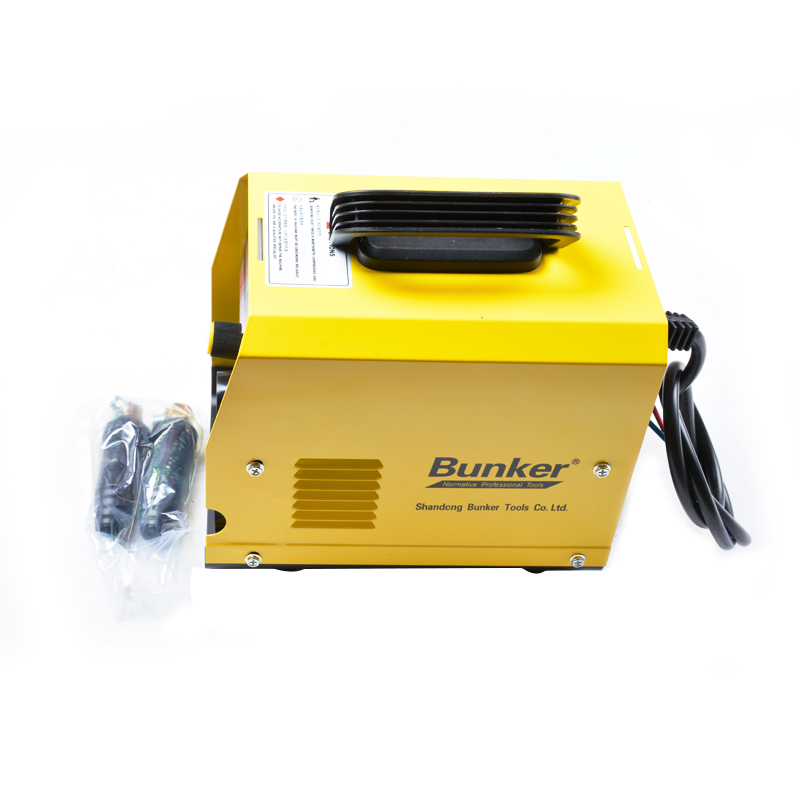

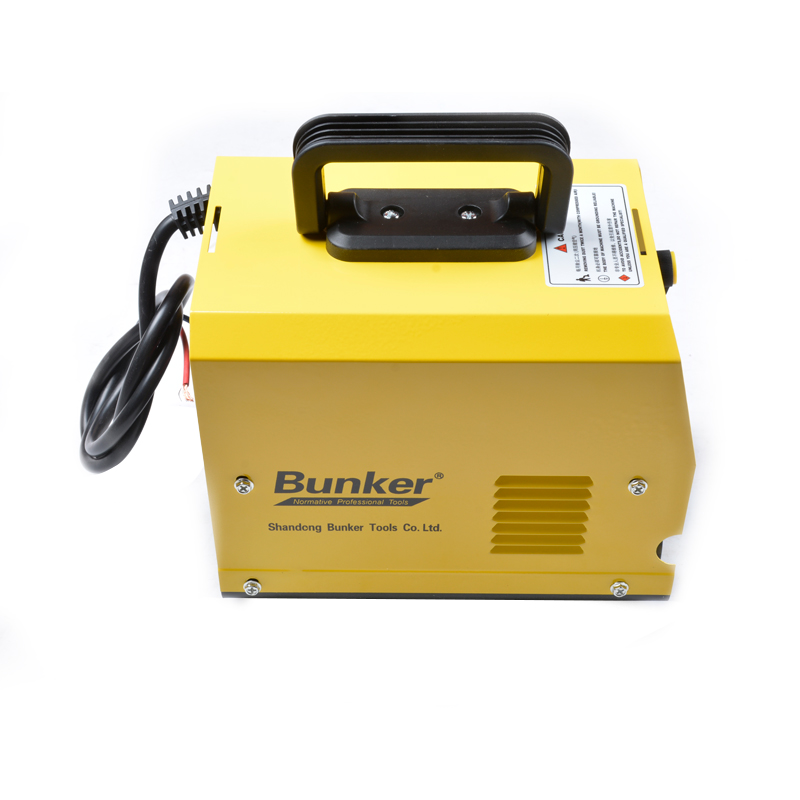

Portable Inverter DC Arc Welding Machine

Product Introduction

The ZX7 Series Inverter DC Welding Machine is a lightweight, high-performance arc welding solution built for professional welders and industrial maintenance. Utilizing advanced Pulse-Width Modulation (PWM) technology and robust inverter circuits, this machine provides a stable, high-power DC output with minimal spatter and excellent arc-striking capability. Designed to withstand tough job site conditions, it automatically compensates for grid voltage fluctuations while offering built-in over-voltage and over-current protections. Whether working with acidic or alkaline electrodes, the ZX7 series delivers superior weld bead aesthetics and reliable performance while reducing energy consumption by over 30% compared to traditional heavy transformer welders.

Product Features

Automatic Voltage Fluctuation Compensation: The machine automatically adjusts to compensate for power voltage fluctuations, ensuring a steady and stable welding current.

Strong Resistance to Power Grid Fluctuations: Offers excellent protection and operational stability against unstable rural or industrial power grids.

Over-Voltage & Over-Current Protection: Built-in automatic safety protection functions prevent internal circuit damage during sudden power surges.

Excellent Thrust Compensation & Low Spatter: Provides smooth arc transfer, efficient penetration, clean welds, and minimal spatter cleanup.

Pulse-Width Modulation (PWM) Technology: Outputs high-power DC with high efficiency and extremely stable performance.

Compact & Lightweight Design: Compact dimensions and light weight significantly enhance job-site portability and overhead operation flexibility.

Energy-Efficient: Improves welding energy efficiency by more than 30% compared to traditional heavy transformer welders, reducing power bills.

Continuous Current Adjustment: Precision stepless control allows fine-tuning of the welding current for various metal thicknesses and applications.

Versatile for Different Electrodes: Fully suitable for use with both acidic (e.g., J422/E6013) and alkaline (e.g., J507/E7018) welding electrodes.

Specifications

Applications

Steel Structure Construction: Welding of I-beams, angle steel, rebar, and architectural frames.

Pipeline & Tank Installation: Oil, gas, water supply pipelines, and sheet metal pressure tanks.

Equipment Maintenance & Repair: On-site mechanical repairs, agricultural tool maintenance, and hardware modification.

Home & DIY Fabrication: Metal gates, handrails, doors, steel furniture, and light metal craft.

Why Choose Us

Advanced Inverter Core: Uses top-tier IGBT/PWM technology to ensure stable arc control, low heat generation, and long continuous duty cycles.

Ultra-Portable & Rugged: Designed with a reinforced high-impact casing and ergonomic handle, weighing only 8kg (Net Weight) for easy transport.

Rigorously Quality Tested: Every welder passes load testing, thermal endurance tests, arc-striking performance checks, and drop tests before shipping.

Safe Export Logistics: Individual heavy-duty cardboard packaging (48x39x42.5cm) with foam cushioning ensures 100% damage-free international transport.

FAQ

Q1: What type of welding electrodes can be used with the ZX7 series welder?

A: The ZX7 series supports both acidic (e.g., E6013/J422) and basic/alkaline (e.g., E7018/J507) electrodes ranging from 2.0mm to 4.0mm diameter depending on the amperage model.

Q2: Can this machine operate normally with a gasoline/diesel generator?

A: Yes, thanks to the automatic voltage fluctuation compensation technology, it works stably even when powered by suitable industrial generators.

Q3: What accessories are included in the standard carton package?

A: Standard set package usually includes 1x Inverter Welder machine, 1x Electrode Holder with cable, 1x Earth Clamp with cable, 1x Wire Brush/Hammer, and 1x Basic Face Shield.

Q4: What is the main advantage of PWM inverter technology over traditional transformer welders?

A: PWM technology offers precise DC output, higher electrical efficiency (30%+ power savings), lighter machine weight, and significantly less welding spatter.

Q5: What are the outer package specs for calculating shipment freight?

A: Each unit comes in 1 carton. Package size: 48×39×42.5 cm, Gross Weight: 9 kg, Net Weight: 8 kg.

OEM/ODM Services

We offer tailor-made OEM/ODM production services for welding tool brands and global machinery distributors:

Custom Housing & Front Panel: Customized machine case colors (Yellow, Orange, Red, Blue, Black, etc.), customized control panel artwork, and brand logo silk-screening.

Voltage & Plug Customization: Tailored input voltage options (Single phase 110V, 220V, dual voltage 110V/220V, or 380V) and regional power plugs (EU, US, UK, AU).

Cable & Accessories Options: Customized welding cable lengths (1.5m, 2m, 3m, 5m), copper/aluminum cable materials, and heavy-duty electrode clamps.

Custom Packaging: Custom-designed full-color outer retail boxes, customized brand shipping cartons, and localized instruction manuals.
