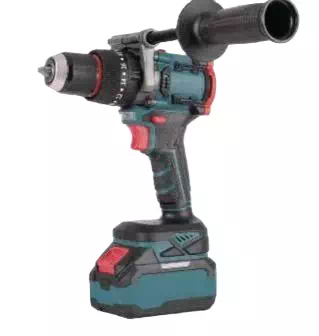

20V Brushless Cordless Impact Drill 13mm (1/2") | 3-Function, up to 150N.m

The Dawei 20V brushless cordless impact drill is a 3-function power drill with a 13mm (1/2") chuck for drilling, screwdriving and impact (hammer) drilling. The brushless motor delivers strong torque of up to 150N.m, with 2 speed ranges for everything from careful screw driving to fast drilling. Choose from 3 models: the compact JZ02-13(40) (70N.m), or the high-torque JZ1320-40 and JZ1320-60 (150N.m, with auxiliary side handle).

Key Features

• 3 functions in one tool: drilling, screwdriving and impact (hammer) drilling, so one tool covers many jobs.

• Brushless motor: higher efficiency, longer service life and less maintenance than brushed motors.

• High torque up to 150N.m (JZ1320 series) or 70N.m (JZ02-13): choose the torque level that fits your work.

• 13mm (1/2") keyless chuck capacity: accepts a wide range of drill bits and driver bits.

• 2 speed ranges: low speed for high-torque driving and high speed (up to 2,100 rpm) for fast drilling, with variable speed from the trigger.

• Auxiliary side handle (JZ1320 series): better control and safer operation during high-torque work.

• 20V lithium battery platform: every kit includes 2 batteries and a charger, so one battery can charge while the other works.

• Plastic carry case included: protects the tool and accessories in transport and storage.

Technical Specifications & Model Comparison

Which Model Should You Choose?

• JZ02-13(40): a compact, cost-effective model with 70N.m torque, ideal for light to medium drilling and screwdriving.

• JZ1320-40: a high-torque version with 150N.m, higher speeds (0–2,100 rpm), auxiliary side handle and 3.0Ah batteries, for professional and heavy-duty work.

• JZ1320-60: the same high-torque tool with larger 4.5Ah batteries and a faster 1.5A desktop charger, for longer working time and daily professional use.

Approximate battery energy: 3.0Ah ≈ 60Wh and 4.5Ah ≈ 90Wh per battery (20V × Ah). Actual runtime depends on material, bit type and operating habits.

What's in the Box

• 1 × 20V brushless cordless impact drill

• 2 × 20V lithium batteries (3.0Ah or 4.5Ah, depending on model)

• 1 × charger (0.6A corded or 1.5A desktop, depending on model)

• Auxiliary side handle (JZ1320 series)

• 1 × plastic carry case (medium or large, depending on model)

Drill bits and driver bits are not included unless agreed in your order.

Applications

• Drilling in wood, metal and plastic

• Impact drilling in brick, masonry and light concrete (with suitable masonry bits)

• Driving and removing screws and fasteners

• Construction, decoration, furniture assembly and installation

• Maintenance, repair and DIY work on site or at home

OEM / ODM & Wholesale Supply

Dawei Metal is a hardware tools manufacturer and exporter based in Jinan, Shandong, China. We supply this cordless impact drill series to distributors, brand owners and wholesalers in Europe, America, Southeast Asia and the Middle East. We can discuss custom logo, color, battery configuration and packaging. Contact us for MOQ, sample and price information.

Frequently Asked Questions

What does "3-function" mean?

The drill can be used in three ways: drilling, screwdriving and impact (hammer) drilling, so it works on wood, metal and masonry with suitable bits.

What is the difference between JZ02-13(40) and the JZ1320 models?

JZ02-13(40) has 70N.m max torque and speeds up to 2,000 rpm. The JZ1320 models deliver up to 150N.m torque and speeds up to 2,100 rpm, and include an auxiliary side handle.

What is the difference between JZ1320-40 and JZ1320-60?

The drill is the same. JZ1320-40 includes two 20V 3.0Ah batteries and a 0.6A charger. JZ1320-60 includes two 20V 4.5Ah batteries for longer runtime and a 1.5A desktop charger.

What is the maximum drill bit size?

The chuck capacity is 13mm (1/2 inch).

Can I order with my own brand or custom packaging?

Yes. OEM/ODM orders are welcome. Please send us your requirements for logo, color and packaging.

Get a Quote

Tell us the model, quantity and destination country, and we will reply with pricing and lead time.
