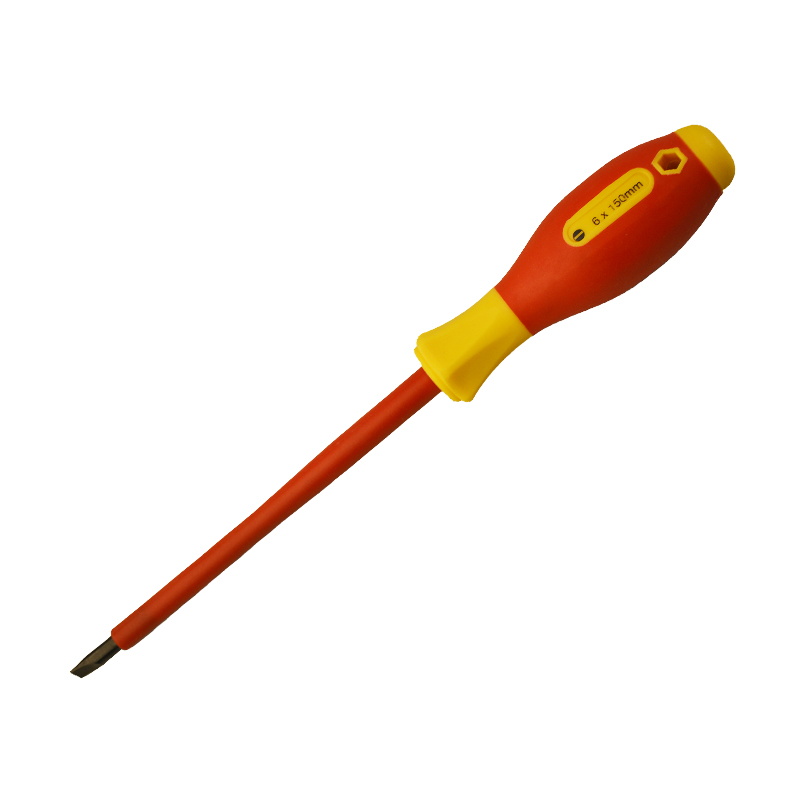

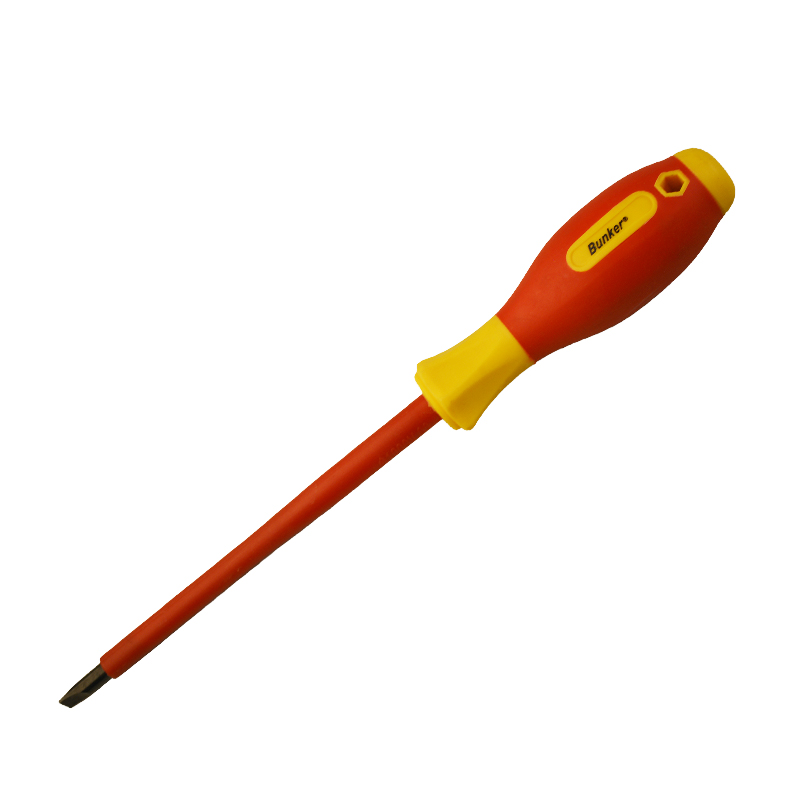

Slotted Insulated Screwdriver 220V | Electrician Tool

Product Introduction

The Slotted Insulated Screwdriver is an indispensable safety hand tool engineered specifically for electricians, maintenance technicians, and power utility workers. Forged from high-strength Chrome Vanadium (Cr-V) steel, the blade features a single-molding insulation layer that seamlessly covers the shank. Combined with an ergonomically designed H0506 high-polymer insulated handle, this flathead screwdriver provides optimal torque, anti-slip control, and trustworthy electrical protection during low-voltage installation and repair tasks.

Product Features

Durable Blade: Forged from premium Chrome Vanadium (Cr-V) steel for superior strength, high hardness, and long service life under heavy torque.

One-Piece Insulation: The metal blade and outer insulation layer are formed in a single molding process to ensure maximum dielectric safety without peeling or cracking.

Insulated Handle: Made from H0506 high-polymer insulation material by precision injection molding, delivering excellent grip comfort, impact resistance, and high electrical insulation safety.

Precision Slotted Tip: Machined tip geometry ensures a snug fit into slotted screw heads, reducing cam-out and slippage.

Safety & Operating Guidelines

Continuous Duty Limit: Under normal operation at 220V voltage, continuous working time must not exceed 10 minutes to prevent dielectric thermal fatigue.

Voltage Ratings: Safe Working Voltage: 220V; Factory Test Voltage: 380V.

Safety Inspection: Inspect the insulation coating before every use. If the plastic insulation coating shows any cuts, cracks, or damage, stop using the tool immediately for safety.

Product Specifications

Product No.	Size	Box/Ctn(pcs)	Gross/Net Weight(kg)	Ctn Size(cm)
BK-272001	3×60	12/240	8/7.5	42×22×28
BK-272002	5.5×80	12/240	15/14.5	57×24.5×31
BK-272003	6.5×100	12/180	17/16.5	57×24.5×24
BK-272004	6.5×150	12/180	19/18.5	57×29.5×24

Application

Low-Voltage Electrical Wiring: Household power socket installation, light switch wiring, and circuit breaker maintenance.

Control Cabinet Maintenance: Wiring terminal blocks inside industrial distribution boxes and PLC control cabinets.

Appliance Repair: Repairing air conditioners, washing machines, refrigerators, and small electronic devices.

Why Choose Us

High-Grade H0506 Polymer: We use certified H0506 polymer raw material for superior electric resistance compared to low-cost recycled plastics.

Seamless Injection Molding: Single-molding technique eliminates insulation air gaps, minimizing electrical breakdown risks.

Strict Factory Dielectric Testing: Every batch passes high-voltage breakdown factory inspections.

Direct Factory Source: Competitive wholesale price with reliable mass production delivery for hardware distributors.

OEM & ODM Services

We support full OEM & ODM services for tool importers and brand distributors:

Custom Branding: Laser etch your logo on the steel blade or print it on the H0506 handle.

Custom Handle Colors: Customize the handle color scheme based on your corporate identity (Pantone matched).

Custom Packaging: Blister cards, sliding display cards, hanging pouch, or inner display box options.

FAQ

Q1: What is the maximum safe operating voltage for this screwdriver?

A: The recommended safe working voltage is 220V. The factory dielectric test voltage rating is 380V.

Q2: Why is there a 10-minute continuous operation limit under 220V?

A: Working continuously under voltage causes microscopic thermal accumulation in insulation materials. Restricting continuous live-line operation to 10 minutes prevents dielectric thermal degradation and keeps the operator safe.

Q3: What should I do if the plastic insulation coating is chipped or scratched?

A: Stop using the tool immediately for any live electrical work. Damaged insulation can cause current leakage and serious electrical shock.

Q4: What material is used for the insulation handle?

A: It is injection molded from H0506 high-polymer insulation material, offering excellent impact resistance and high dielectric breakdown strength.

Q5: What is the Minimum Order Quantity (MOQ) for custom OEM orders?

A: Our standard OEM MOQ for customized handle colors and custom branded packaging is 1,200 pcs per specification.
