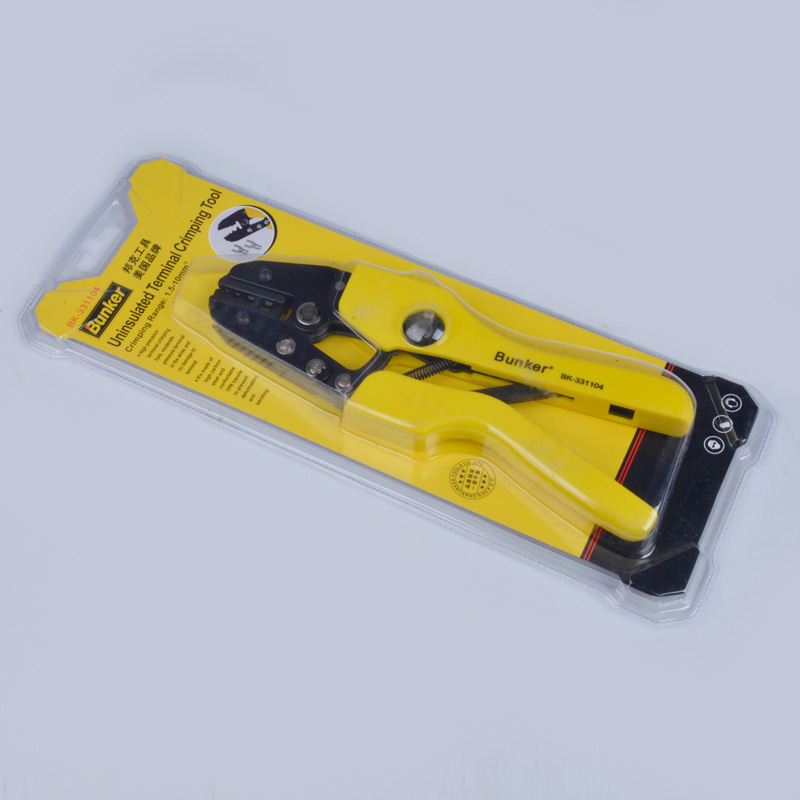

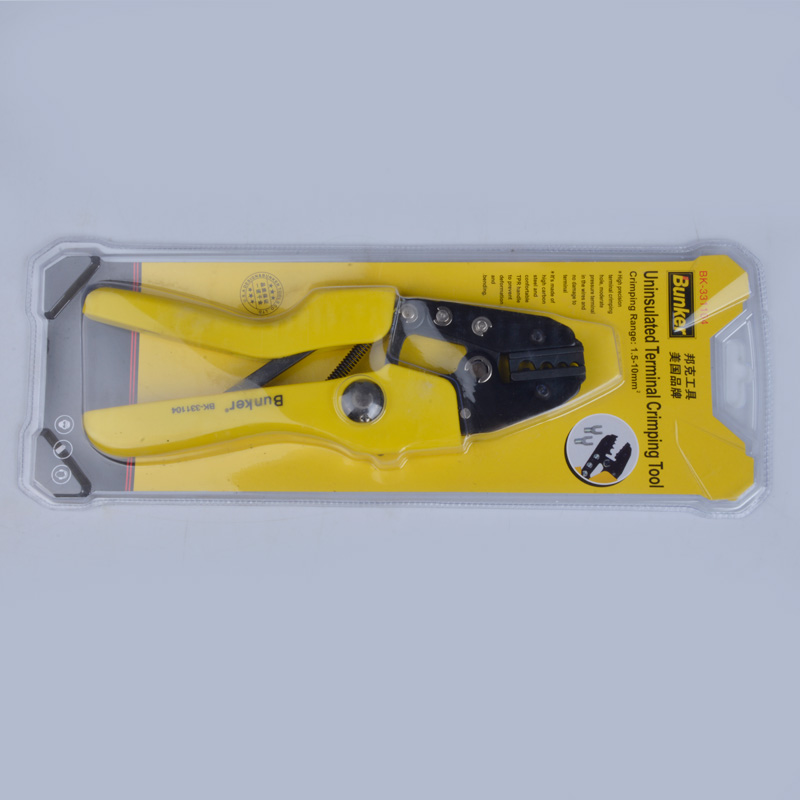

04-Type Terminal Crimping Pliers

Product Overview

The 04-Type Terminal Crimping Pliers are manual crimping tools designed for wire-to-terminal connection tasks, including compatible terminal crimping, electrical installation, equipment wiring, and wire harness preparation. By selecting a crimping position that matches the terminal specification and wire size, users can create a mechanical connection between the terminal and conductor.

The plier body is made from 45# heat-treated steel to provide a stable structural base for routine crimping work. The jaws are made from high-carbon steel and are designed for repeated crimping operations. The TPR handles help provide a more comfortable grip for manual force application and operation control.

Actual crimping results depend on terminal type, terminal material, wire size, conductor construction, insulation thickness, and crimping die profile. Before purchasing and using the tool, please confirm the terminal type, compatible wire size, crimp shape, and technical requirements.

Specifications

Product Features

1. 45# Heat-Treated Steel Body

The body is made from 45# steel with heat treatment, providing a stable structural base for routine terminal crimping work.

2. High-Carbon Steel Jaws

The jaws are made from high-carbon steel and are suitable for repeated crimping of compatible terminals, helping support stable crimping contact.

3. Comfortable TPR Handle

The TPR handle provides a comfortable grip for electrical installation, repair, and wire harness work involving repeated manual operation.

4. Straightforward Manual Crimping

The manual structure allows users to select a suitable crimping position according to terminal type and wire size, making it suitable for workshops, repair stations, and field work.

5. Designed for Terminal Connection Work

Suitable for compatible terminal crimping, wire connection, equipment wiring, and wire harness preparation tasks.

6. Suitable for Multiple Tool Channels

Suitable for hardware tools, electrical tools, industrial maintenance tools, wire harness processing tools, and DIY tool markets.

7. OEM/ODM Customization Available

Custom logo marking, TPR handle colors, packaging, labels, barcodes, manuals, and selected appearance options are available.

Applications

The 04-Type Terminal Crimping Pliers can be used for compatible terminal crimping and wire connection tasks, including:

Electrical installation and wiring work

Wiring of control panels, distribution boxes, and electrical equipment

Terminal-to-wire crimping

Wire harness processing and wire preparation

Household appliance repair and equipment maintenance

Automotive, motorcycle, and low-voltage equipment wiring repair

Communication, security, and low-voltage system installation

Industrial equipment maintenance and workshop assembly

Hardware repair, construction, and field maintenance

DIY electronics projects and household electrical repair

Note:

Confirm that the terminal type, wire size, and crimping die are compatible before use.

Do not use the tool on terminals, cables, steel wire, wire rope, or high-hardness materials outside the approved application range.

Always make sure the circuit is de-energized before use. Do not use on live circuits unless the product is specifically marked and certified for live electrical work.

For safety-critical or high-reliability connections, crimp quality inspection and pull testing according to applicable standards are recommended.

Why Choose Us

1. Clear Material Specifications

The product uses a 45# heat-treated steel body, high-carbon steel jaws, and TPR handles, providing clear material information for sourcing and product positioning.

2. Designed for Terminal Crimping and Electrical Work

Suitable for terminal connection, control panel wiring, equipment repair, wire harness processing, and low-voltage electrical installation.

3. Balanced Durability and User Comfort

The steel body and high-carbon steel jaws provide a durable structural foundation, while the TPR handles help improve comfort during repeated operation.

4. Application-Based Selection Support

Terminal type, wire size, terminal material, and crimping standards can affect final results. Customers can provide terminal samples, wire information, or technical requirements for compatibility evaluation.

5. OEM/ODM Brand Support

Custom logos, handle colors, hang cards, labels, color boxes, manuals, barcodes, and retail packaging are available.

6. Suitable for Bulk Orders and Multiple Sales Channels

Suitable for electrical tool brands, hardware distributors, industrial suppliers, automotive repair tool suppliers, project buyers, and e-commerce sellers.

OEM / ODM（Optional）

OEM/ODM services are available, including but not limited to:

Laser logo marking, printing, or stamped marking on the body or jaws

Custom TPR handle colors, dual-color combinations, and brand color schemes

Custom brand labels, hang cards, stickers, and safety warning labels

Custom color boxes, paper cards, blister packs, PE bags, shrink wrapping, and export cartons

Multilingual manuals, barcodes, product codes, and market-specific labels

E-commerce, retail, gift, and industrial bulk packaging solutions

Selected jaw die specifications, packaging sets, or appearance development based on project requirements

Customization Note:

MOQ, sample cost, production lead time, packaging method, and customization scope depend on final project requirements. For changes involving jaw dies, crimping range, product dimensions, handle materials, or functions, final approved drawings, samples, and technical agreements shall prevail.

Use and Maintenance Tips

Always make sure the circuit is de-energized before use.

Select the appropriate crimping position according to terminal type and wire size.

Before crimping, make sure the conductor is correctly inserted into the terminal crimping area.

Apply force evenly during crimping. Avoid angled pressure, repeated misaligned crimping, or forcing the tool onto incompatible terminals.

After crimping, inspect the terminal appearance, crimp position, and wire retention.

For important electrical connections, pull testing or electrical performance inspection according to applicable standards is recommended.

Do not use the crimping pliers to cut steel wire, wire rope, hard metal rods, or other incompatible materials.

Clean the jaws and joint areas after use to remove dust, oil, and metal debris.

Store the tool in a dry and clean environment to reduce moisture exposure and corrosion risk.

Stop using the tool if the jaws are worn, deformed, loose, the handle is damaged, or crimping performance becomes abnormal.

FAQ

1. What types of terminals are suitable for these 04-Type Terminal Crimping Pliers?

This product is suitable for terminals that match the actual jaw die profile and crimping specification. Compatible terminal type, crimp shape, and wire size range should be confirmed according to the specific model. Please provide terminal photos, samples, dimensions, or wire details before purchase for compatibility confirmation.

2. What are the features of a 45# heat-treated steel body?

45# steel is a commonly used medium-carbon steel material. After heat treatment, it provides a dependable structural base and durability for routine manual crimping tasks. Actual service life also depends on frequency of use, applied force, and maintenance.

3. What is the purpose of high-carbon steel jaws?

High-carbon steel jaws provide durable structural support for terminal crimping areas and are suitable for repeated crimping work. Actual crimping results depend on terminal material, wire size, jaw die compatibility, and proper operation.

4. How can I ensure a secure terminal crimp?

Use a crimping position that matches the terminal and wire size, ensure the conductor is fully inserted into the terminal crimp area, and inspect the terminal for abnormal deformation or loose wire retention after crimping. For important connections, pull testing or inspection according to applicable industry standards is recommended.

5. Do you offer OEM/ODM customization?

Yes. OEM/ODM services are available for logos, TPR handle colors, packaging, labels, hang cards, barcodes, manuals, and selected jaw die or appearance customization. Please provide your estimated order quantity, target market, terminal type, and customization requirements for evaluation.
